Polyvinylidene Fluoride (Kynar®)
PVDF combines fluoropolymer chemical resistance with superior mechanical strength and purity. Ideal for semiconductor, pharmaceutical, and chemical processing.
PVDF (Kynar®) is a high-purity fluoropolymer bridging PTFE and engineering plastics. It offers excellent chemical resistance with significantly better mechanical properties than PTFE.
PVDF's exceptional purity, low extractables, and UV/radiation resistance make it ideal for ultra-pure fluid handling in semiconductor and pharmaceutical industries.
| Density | 1.78 g/cm³ |
| Tensile Strength | 45 - 55 MPa |
| Flexural Modulus | 1,800 - 2,100 MPa |
| Operating Temperature | -30°C to +150°C |
| Melting Point | 170°C |
| Water Absorption | < 0.04% |
| Dielectric Strength | 67 kV/mm |
| Flammability | UL94 V-0 |
Ultra-pure fluid handling and wet bench components.
High-purity piping, valves, and vessels.
Linings and seals for aggressive chemicals.
FDA-compliant processing equipment.
Diaphragms and components for corrosive media.
Cable insulation for harsh environments.

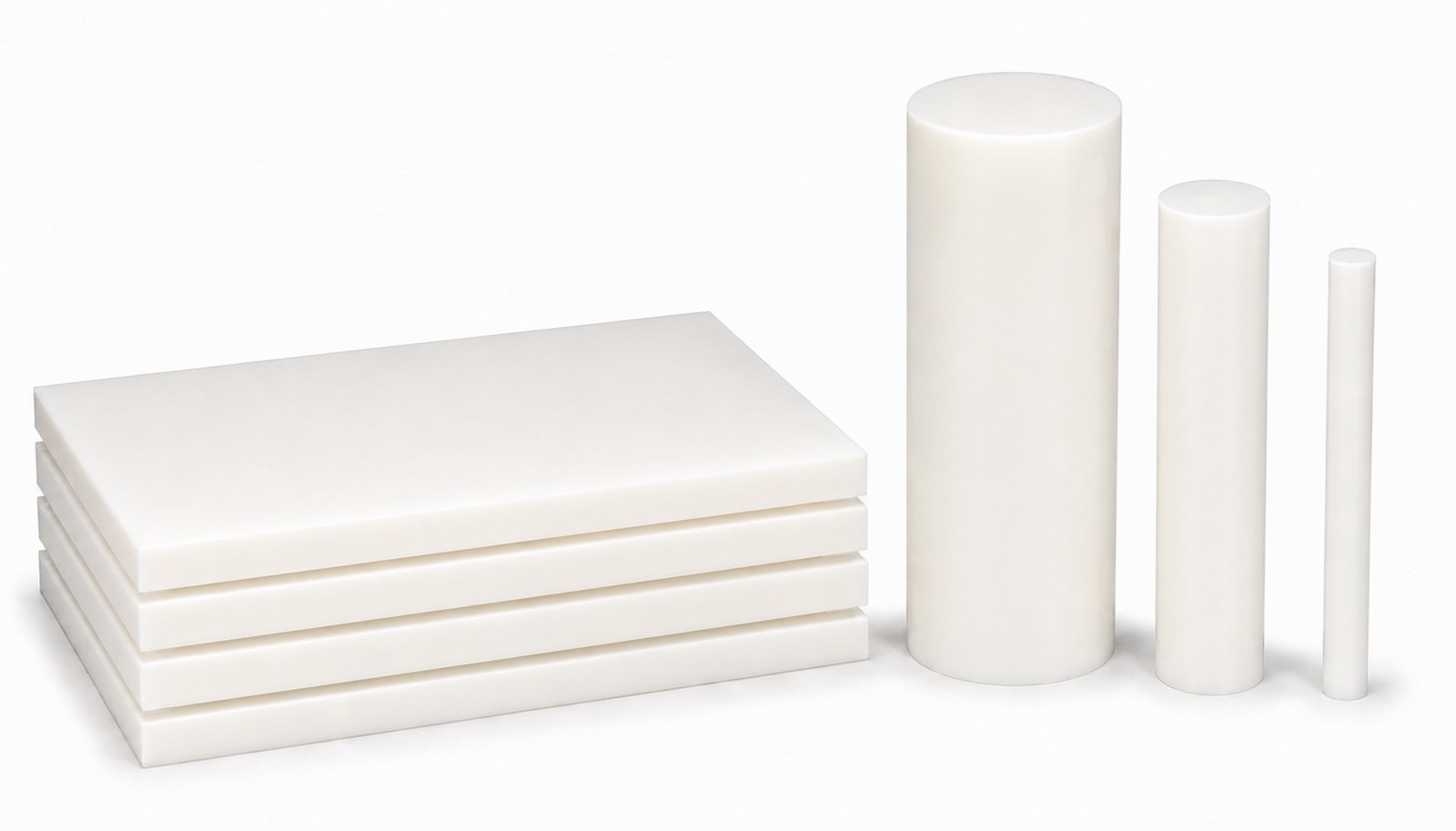

Get a quote for sheets, rods, tubes, or custom-machined components.
