Material Properties

ECTFE (sold as Halar®) is a partially fluorinated polymer that offers an excellent balance of chemical resistance, mechanical strength, and processability. It provides better impact resistance and abrasion resistance than most other fluoropolymers.

ECTFE maintains its properties across a wide temperature range and offers excellent resistance to permeation, making it ideal for tank linings, piping, and protective coatings in corrosive environments.

Broad chemical resistance to acids, bases, and solvents
Excellent impact and abrasion resistance
Low permeability to gases and liquids
Wide operating temperature range (-75°C to +150°C)
FDA compliant for food contact

Technical Specifications

Density	1.68 g/cm³
Tensile Strength	40 - 48 MPa
Flexural Modulus	1,400 MPa
Operating Temperature	-75°C to +150°C
Melting Point	240°C
Water Absorption	< 0.1%
Impact Strength (Izod)	No break
Flammability	UL94 V-0

Applications

ECTFE's combination of chemical resistance and mechanical strength makes it ideal for demanding chemical processing and semiconductor applications.

Chemical Processing

Tank linings, piping systems, and vessels for handling corrosive chemicals.

Semiconductor

Wet bench components, wafer carriers, and chemical delivery systems.

Pharmaceutical

Process equipment and piping for pharmaceutical manufacturing.

Pumps & Valves

Pump linings, valve components, and seals for corrosive media.

Food Industry

FDA-compliant equipment for food and beverage processing.

Wire & Cable

Insulation and jacketing for harsh chemical environments.

Available Forms

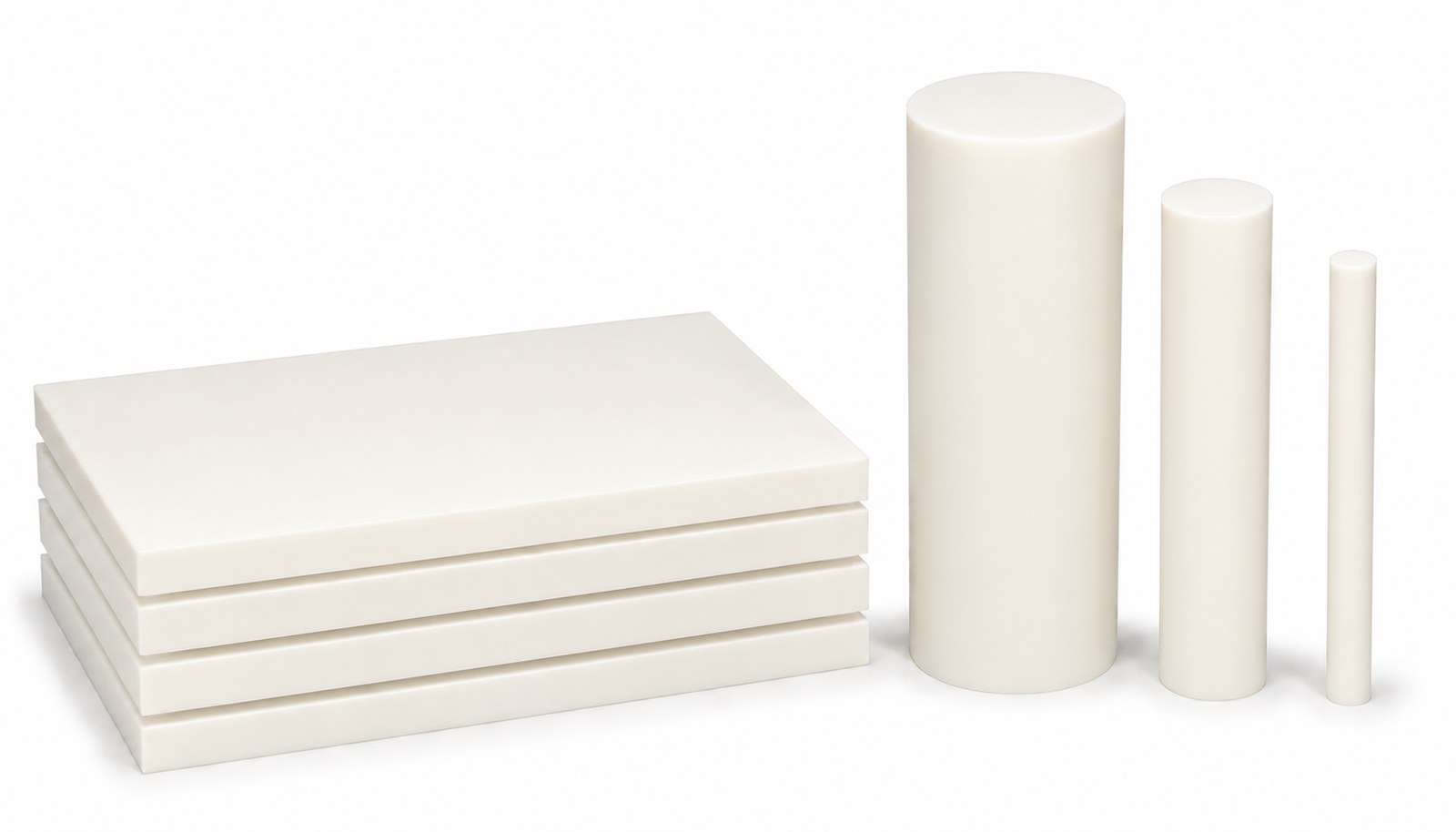

We supply ECTFE in sheets, rods, and tubes, as well as custom-machined components for chemical processing applications.

Sheets

Rods

Tubes

Machined Parts
